Product Overview

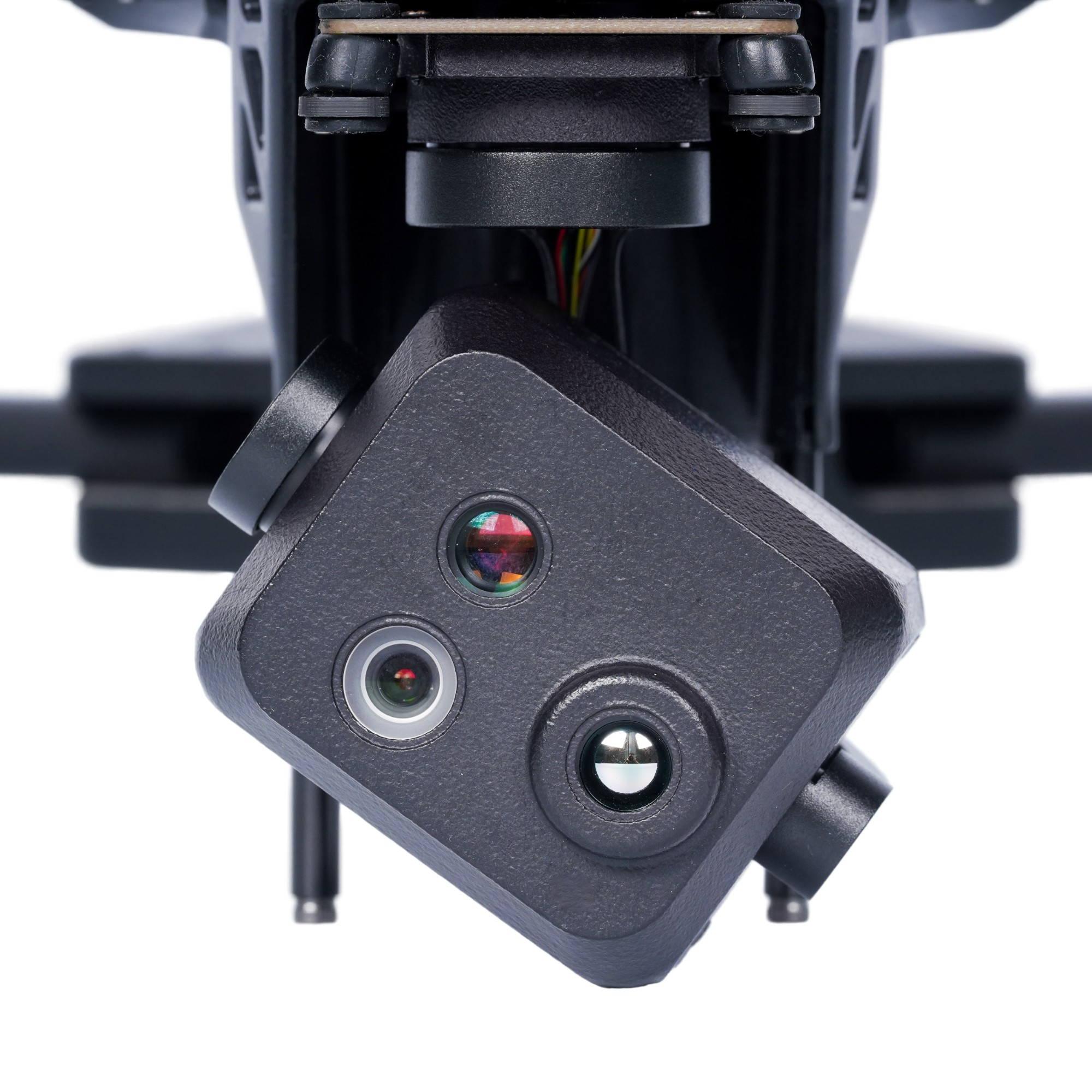

Engineered for demanding environments, this cutting-edge UAV gimbal seamlessly integrates three core imaging capabilities: wide-angle situational awareness, long-distance telephoto observation, and powerful thermal night/penetration vision. Whether you are outfitting a drone fleet for emergency response or equipping unmanned ground vehicles for industrial inspections, this system deeply fuses these sensors to ensure you can "see the whole picture, see the finest details, and see through the darkness."
Designed to maximize operational efficiency, our highly versatile drone payload pod features advanced AI computing, linked zoom, and top-tier image stabilization. It serves as an intelligent AI tracking gimbal that delivers all-weather, all-scenario, and long-range, precise observation. With universal platform adaptability, it effortlessly transforms multi-rotor drones, fixed-wing UAVs, patrol cars, and robot dogs into powerful, unblinking tactical command centers.
KEY FEATURES
3-IN-1 SENSOR INTEGRATION
Replace multiple individual payloads with a single integrated device. This innovative "three-in-one" optical design significantly reduces procurement costs, lowers overall takeoff weight, and drastically simplifies operational complexity for the pilot.
HIGH-PRECISION 3-AXIS STABILIZATION
Utilizes an advanced three-axis stabilized platform that effectively isolates and suppresses aircraft vibrations. This ensures the gimbal camera delivers smooth, crystal-clear, and highly stable image output even during dynamic flight maneuvers.
24/7 ALL-WEATHER OPERATIONS
Engineered for continuous deployment, the system combines high-definition visible light imaging for daytime use with powerful thermal imaging for nighttime or harsh environmental conditions, guaranteeing blind-spot-free surveillance around the clock.
REAL-TIME MULTI-OBJECT RECOGNITION & TRACKING
Empowered by advanced algorithms, the EO/IR pod can simultaneously identify, lock onto, and track various types of moving targets in real-time, accurately distinguishing between pedestrians, ground vehicles, and maritime vessels.
FULL-DOMAIN PERCEPTION & COVERAGE
Achieve comprehensive, multi-dimensional situational awareness: the wide-angle lens monitors the broad "surface," the long-range telephoto lens zooms in on specific "points," and the thermal imager "sees through" darkness and obstructions.
SMART EFFICIENCY & AI AUTOMATION
Maximize operational efficiency with built-in artificial intelligence. The payload features AI-driven automatic tracking, real-time temperature measurement with anomaly alarms, and super-resolution image enhancement, significantly reducing the need for manual operator intervention.
Technical Specifications
|
MODEL
|
HY-300F
|
|
GIMBAL PARAMETERS
|
|
|
Image Stabilization Accuracy
|
≤0.001°
|
|
Frame Format
|
Three-Axis Mechanical Gyroscope Stabilization
|
|
Rotation Direction Can Be Controlled
|
Looking Up And Down:-135°~+45°,Direction:-75°~+75°,Roll:-45°~+45°
|
|
Response Speed
|
Position/Maximum Pitch Angular Velocity:60°/S;Acceleration:120°/S²
|
|
Control Method
|
Manual Control(Joystick)Preset Waypoint TriggeringAISmart Lock
|
|
WIDE-ANGLE CAMERA PARAMETERS
|
|
|
Image Sensor
|
1/2.0InchCMOS
|
|
Pixels
|
4800Ten Thousand
|
|
Perspective
|
70°
|
|
Physical Focal Length
|
6mm
|
|
Aperture
|
F/2.8
|
|
TELEPHOTO CAMERA PARAMETERS
|
|
|
Image Sensor
|
1/3.06InchCMOS
|
|
Pixels
|
1300Ten Thousand
|
|
Perspective
|
27°
|
|
Physical Focal Length
|
16mm
|
|
Aperture
|
F/2.0
|
|
THERMAL IMAGING CAMERA PARAMETERS
|
|
|
Resolution
|
640×512
|
|
Focal Length
|
9.1mm
|
|
Detection Range
|
1.5KM
|
|
FOV
|
24.8°×18.7°
|
|
Pixel Pitch
|
12um
|
|
IDENTIFICATION AND TRACKING
|
|
|
Function
|
1)Autonomous Target Recognition Of People, Vehicles, Ships, And Other Targets.(Customizable Expansion);
2)It Features Manual Target Tracking Box Size Setting And Target Locking Capabilities; 3)It Has Target Detection And Tracking Prediction Capabilities; 4)Target Tracking Via Visible Light Or Infrared. |
|
Recognition Accuracy
|
Target Detection Rate: ≥95%;Detection Rate:≤2%
|
|
SYSTEM INDICATORS
|
|
|
Product Dimensions
|
75.8mm (Long)×78.1mm(Width)×84.9mm(High)
|
|
Weight
|
201g
|
|
Data Output
|
Track ID Target Type, Distance Information, Alarm Signals
|
|
Protection Level
|
IP45
|
|
Operating Temperature
|
-20°C To +50°C
|
|
Rain Test
|
It Can Operate Normally Even In Light Rain.
|
|
POWER SUPPLY AND POWER CONSUMPTION
|
|
|
Power Supply
|
DC12V~DC40V @12V 1A
|
|
Stable Power Consumption
|
≤15W
|
|
INTERFACES
|
|
|
Video
|
Network
|
|
Control
|
TTL Serial Port, Network, SBUS, PWM
|
|
Storage
|
Micro SD Card (≤128G Supported)
|
|
LATFORM ADAPTATION
|
|
|
UAV Types
|
Multi-Rotor, Fixed-Wing, Unmanned Helicopter
|
|
Robot Types
|
Patrol Vehicles, Quadruped Robots And Other Inverted Carriers
|
|
Mounting Method
|
Top/Bottom Mounting(Custom Mounting Bracket Supported)
|
|
Flight Controller Compatibilit
|
Support Communication And Docking With Mainstream Flight Controllers (E.G., PIXhawk, APM, DJ SDK)
|
