High Resolution Customization Zoom Ai Eo Uav Pod for Ancient Towns
Product Description

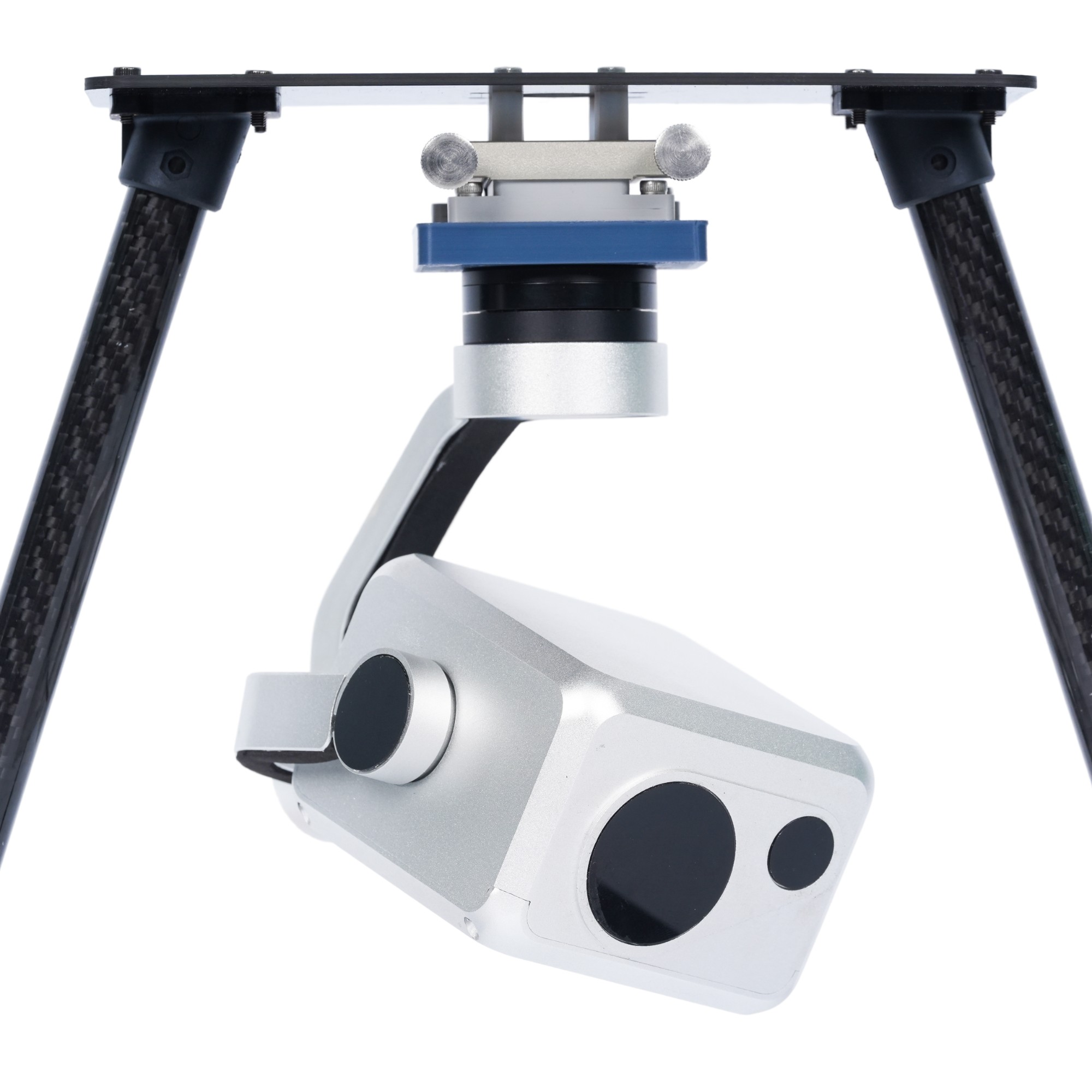

This is a three-axis image stabilization low-light night vision dual-light pod, integrating a long-wave uncooled infrared camera, a 4K pixel high-definition visible light camera, an AI recognition coding board developed in-house, and a three-axis high-stability platform.3-AXIS STABILIZED LOW-LIGHT NIGHT VISION DUAL-SENSOR Drone pod
This high-performance UAV pod seamlessly integrates a long-wave uncooled infrared camera, a 4K HD visible light camera, a self-developed AI recognition encoding board, and a highly stable three-axis platform.
Easily mounted on unmanned aircraft, this premier drone payload pod features starlight-level night vision that captures crystal-clear 4K full-color images while restoring true target colors and details. With exceptional reconnaissance range for armed personnel and real-time visible and infrared video transmission, it delivers powerful battlefield observation and tactical reconnaissance capabilities.
KEY FEATURES
STARLIGHT-LEVEL LOW-LIGHT VISIBILITY
Even in environments with extremely weak light, the starlight-level camera can restore true scenes and capture clear, 4K full-color images, allowing operators to effectively carry out complex night missions.
HIGH STABILITY AND PRECISION
The integration of an advanced three-axis stabilization platform effectively suppresses aircraft vibrations and turbulence, ensuring that the transmitted images remain continuously clear and highly stable.
SMALL SIZE AND LIGHT WEIGHT
Meticulously engineered to minimize volume and weight as much as possible, ensuring the payload does not negatively affect the flight performance, maneuverability, or endurance capabilities of the host aircraft.
MULTI-OBJECT REAL-TIME RECOGNITION AND TRACKING
Powered by an independently developed AI encoding board, the system can simultaneously identify, lock onto, and seamlessly track various types of dynamic targets, including pedestrians, vehicles, and ships.
STRONG ANTI-INTERFERENCE AND HIGH STABILITY
Built specifically for harsh environments, the internal encoding board utilizes deep algorithm optimization to maintain an accurate recognition rate and continuous target tracking even under extreme and unpredictable conditions.
|
MODEL
|
HY-210F
|
|
GIMBAL PARAMETERS
|
|
|
Image Stabilization Accuracy
|
≤0.001°
|
|
Frame Format
|
Three-Axis Mechanical Gyroscope Stabilization
|
|
Rotation Direction Can Be Controlled
|
Looking Up And Down:-110°~+30°,Direction:360°Roll:-45°~+45°
|
|
Response Speed
|
Position/Maximum Pitch Angular Velocity:60°/S;Acceleration:120°/S²
|
|
Control Method
|
Manual Control(Joystick)Preset Waypoint TriggeringAISmart Lock
|
|
VISIBLE LIGHT CAMERA PARAMETERS
|
|
|
Lens Pixels
|
4K
|
|
Zoom
|
10XOptics+16Xnumber
|
|
Focal Length
|
4.8~48mm
|
|
Luminous Full Color
|
Low-Light Visibility, Full Color
|
|
Strong Light Suppression
|
Support
|
|
Backlight Compensation
|
Support
|
|
Fog Transmission Function
|
Support
|
|
Aperture
|
FNo: 1.7~3.2
|
|
Variable Speed
|
About3S(Optics)
|
|
Automatic Day/Night Cycle
|
Have
|
|
THERMAL IMAGING CAMERA PARAMETERS
|
|
|
Resolution
|
640×512
|
|
Focal Length
|
9.1mm
|
|
Detection Range
|
1.5KM
|
|
FOV
|
24.8°×18.7°
|
|
Response Band
|
8~14um
|
|
Pixel Pitch
|
12Um
|
|
IDENTIFICATION AND TRACKING
|
|
|
Function
|
1)Autonomous Target Recognition Of People, Vehicles, Ships, And Other Targets.(Customizable Expansion);
2)It Has The Ability To Manually Set The Target Tracking Box Size And Lock The Target; 3)It Has Target Detection And Tracking Prediction Capabilities; 4)Target Tracking Via Visible Light Or Infrared. |
|
Recognition Accuracy
|
Target Detection Rate: ≥95%;Detection Rate:≤2%
|
|
SYSTEM INDICATORS
|
|
|
Product Dimensions
|
123mm (Long)×97mm(Width)×110mm(High)
|
|
Weight
|
390g
|
|
Data Output
|
Track ID Target Type, Distance Information, Alarm Signals
|
|
Protection Level
|
IP45
|
|
Operating Temperature
|
-20°C to +50°C
|
|
Storage Temperature
|
-20℃~+60℃
|
|
Rain Test
|
It Can Operate Normally Even In Light Rain.
|
|
POWER SUPPLY AND POWER CONSUMPTION
|
|
|
Power Supply
|
DC12V~DC40V @12V 1A
|
|
Stable Power Consumption
|
≤15W
|
|
INTERFACES
|
|
|
Video
|
Network
|
|
Control
|
TTL Serial Port, Network, SBUS, PWM
|
|
Storage
|
≤128G Micro SD Card
|
|
LATFORM ADAPTATION
|
|
|
UAV Types
|
Multi-Rotor, Fixed-Wing, Unmanned Helicopter
|
|
Robot Types
|
Patrol Vehicles, Quadruped Robots And Other Inverted Carriers
|
|
Mounting Method
|
Top/Bottom Mounting(Custom Mounting Bracket Supported)
|
|
Flight Controller Compatibilit
|
Support Communication And Docking With Mainstream Flight Controllers (E.G., PIXhawk, APM, DJ SDK)
|
