Drone payload gimbal thermal imaging

Short Description:

Professional drone payload gimbal with thermal imaging for UAVs. Features 3‑axis stabilization, clear night vision, and high reliability. Ideal for inspection, surveillance, search and rescue, and long‑range aerial missions....

Data Output: Track ID Target Type, Distance Information
Operating Temperature: -20°C to +50°C
Rain Test: It Can Work Normally in Light Rain Conditions.
Stable Power Consumption: ≤15W
Transport Package: Standard Packaging or Customized

Send email to us

Product Details

Product Tags

Get in Touch
Email：cindyxllmachine@163.com
WhatsApp: +8618905106409

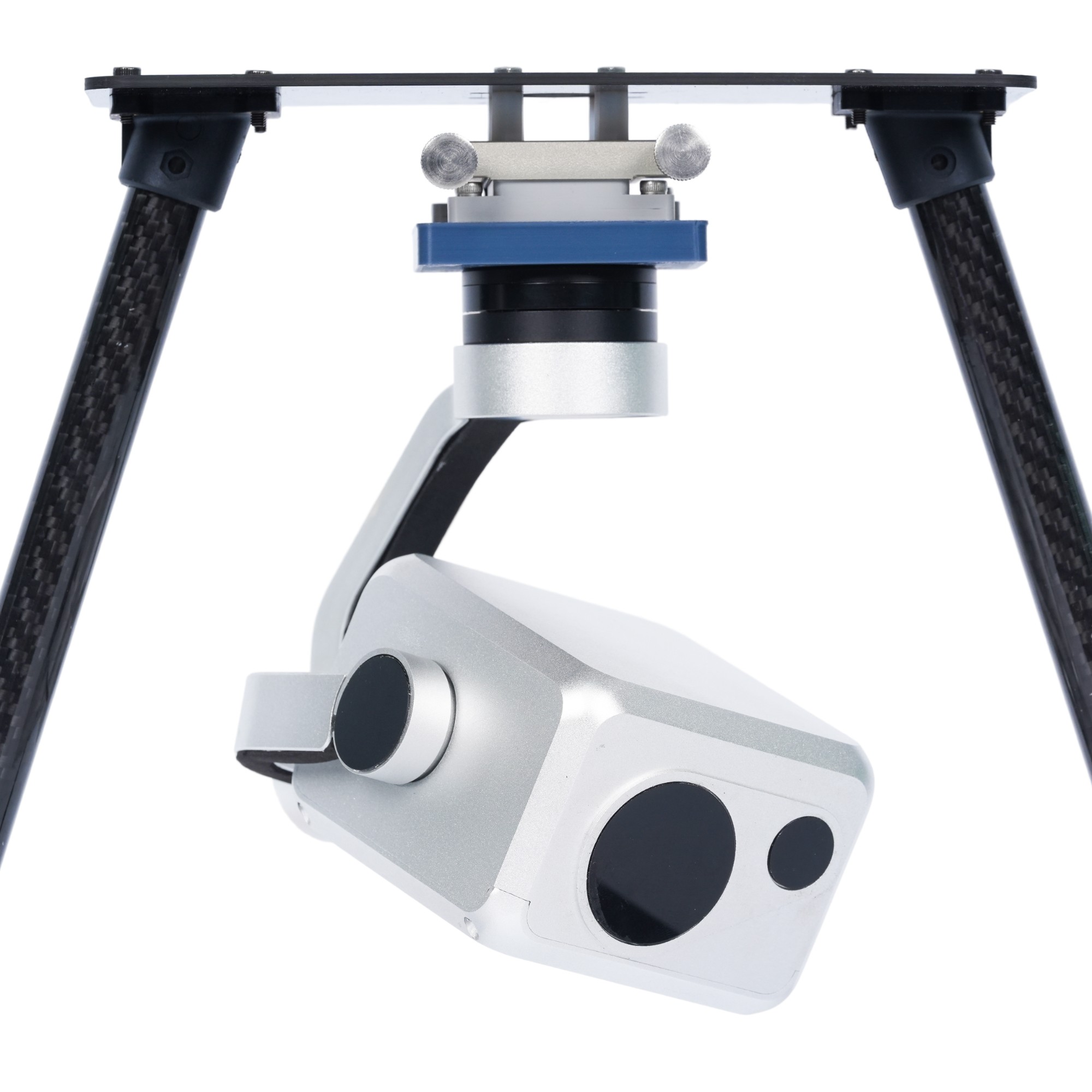

3-AXIS STABILIZED LOW-LIGHT NIGHT VISION DUAL-SENSOR Drone pod
This high-performance UAV pod seamlessly integrates a long-wave uncooled infrared camera, a 4K HD visible light camera, a self-developed AI recognition encoding board, and a highly stable three-axis platform.
Easily mounted on unmanned aircraft, this premier drone payload pod features starlight-level night vision that captures crystal-clear 4K full-color images while restoring true target colors and details. With exceptional reconnaissance range for armed personnel and real-time visible and infrared video transmission, it delivers powerful battlefield observation and tactical reconnaissance capabilities.

KEY FEATURES

STARLIGHT-LEVEL LOW-LIGHT VISIBILITY
Even in environments with extremely weak light, the starlight-level camera can restore true scenes and capture clear, 4K full-color images, allowing operators to effectively carry out complex night missions.

HIGH STABILITY AND PRECISION
The integration of an advanced three-axis stabilization platform effectively suppresses aircraft vibrations and turbulence, ensuring that the transmitted images remain continuously clear and highly stable.

SMALL SIZE AND LIGHT WEIGHT
Meticulously engineered to minimize volume and weight as much as possible, ensuring the payload does not negatively affect the flight performance, maneuverability, or endurance capabilities of the host aircraft.

MULTI-OBJECT REAL-TIME RECOGNITION AND TRACKING
Powered by an independently developed AI encoding board, the system can simultaneously identify, lock onto, and seamlessly track various types of dynamic targets, including pedestrians, vehicles, and ships.

STRONG ANTI-INTERFERENCE AND HIGH STABILITY
Built specifically for harsh environments, the internal encoding board utilizes deep algorithm optimization to maintain an accurate recognition rate and continuous target tracking even under extreme and unpredictable conditions.

Specification

MODEL	HY-210F
GIMBAL PARAMETERS
Image Stabilization Accuracy	≤0.001°
Frame Format	Three-Axis Mechanical Gyroscope Stabilization
Rotation Direction Can Be Controlled	Looking Up And Down:-110°~+30°,Direction:360°Roll:-45°~+45°
Response Speed	Position/Maximum Pitch Angular Velocity:60°/S;Acceleration:120°/S²
Control Method	Manual Control(Joystick)Preset Waypoint TriggeringAISmart Lock
VISIBLE LIGHT CAMERA PARAMETERS
Lens Pixels	4K
Zoom	10XOptics+16Xnumber
Focal Length	4.8~48mm
Luminous Full Color	Low-Light Visibility, Full Color
Strong Light Suppression	Support
Backlight Compensation	Support
Fog Transmission Function	Support
Aperture	FNo: 1.7~3.2
Variable Speed	About3S(Optics)
Automatic Day/Night Cycle	Have
THERMAL IMAGING CAMERA PARAMETERS
Resolution	640×512
Focal Length	9.1mm
Detection Range	1.5KM
FOV	24.8°×18.7°
Response Band	8~14um
Pixel Pitch	12Um
IDENTIFICATION AND TRACKING
Function	1)Autonomous Target Recognition Of People, Vehicles, Ships, And Other Targets.(Customizable Expansion); 2)It Has The Ability To Manually Set The Target Tracking Box Size And Lock The Target; 3)It Has Target Detection And Tracking Prediction Capabilities; 4)Target Tracking Via Visible Light Or Infrared.
Recognition Accuracy	Target Detection Rate: ≥95%;Detection Rate:≤2%
SYSTEM INDICATORS
Product Dimensions	123mm (Long)×97mm(Width)×110mm(High)
Weight	390g
Data Output	Track ID Target Type, Distance Information, Alarm Signals
Protection Level	IP45
Operating Temperature	-20°C to +50°C
Storage Temperature	-20℃~+60℃
Rain Test	It Can Operate Normally Even In Light Rain.

POWER SUPPLY AND POWER CONSUMPTION
Power Supply	DC12V~DC40V @12V 1A
Stable Power Consumption	≤15W
INTERFACES
Video	Network
Control	TTL Serial Port, Network, SBUS, PWM
Storage	≤128G Micro SD Card
LATFORM ADAPTATION
UAV Types	Multi-Rotor, Fixed-Wing, Unmanned Helicopter
Robot Types	Patrol Vehicles, Quadruped Robots And Other Inverted Carriers
Mounting Method	Top/Bottom Mounting(Custom Mounting Bracket Supported)
Flight Controller Compatibilit	Support Communication And Docking With Mainstream Flight Controllers (E.G., PIXhawk, APM, DJ SDK)
