High Precision Custom Zoom Ai Eo Commercial Uav Pod for Port Security
Get in Touch
Email：cindyxllmachine@163.com
WhatsApp: +8618905106409
Professional drone camera for search and rescue. Features day/night imaging, thermal detection, and high stability. Ideal for emergency rescue, surveillance, and long-range mission operations.

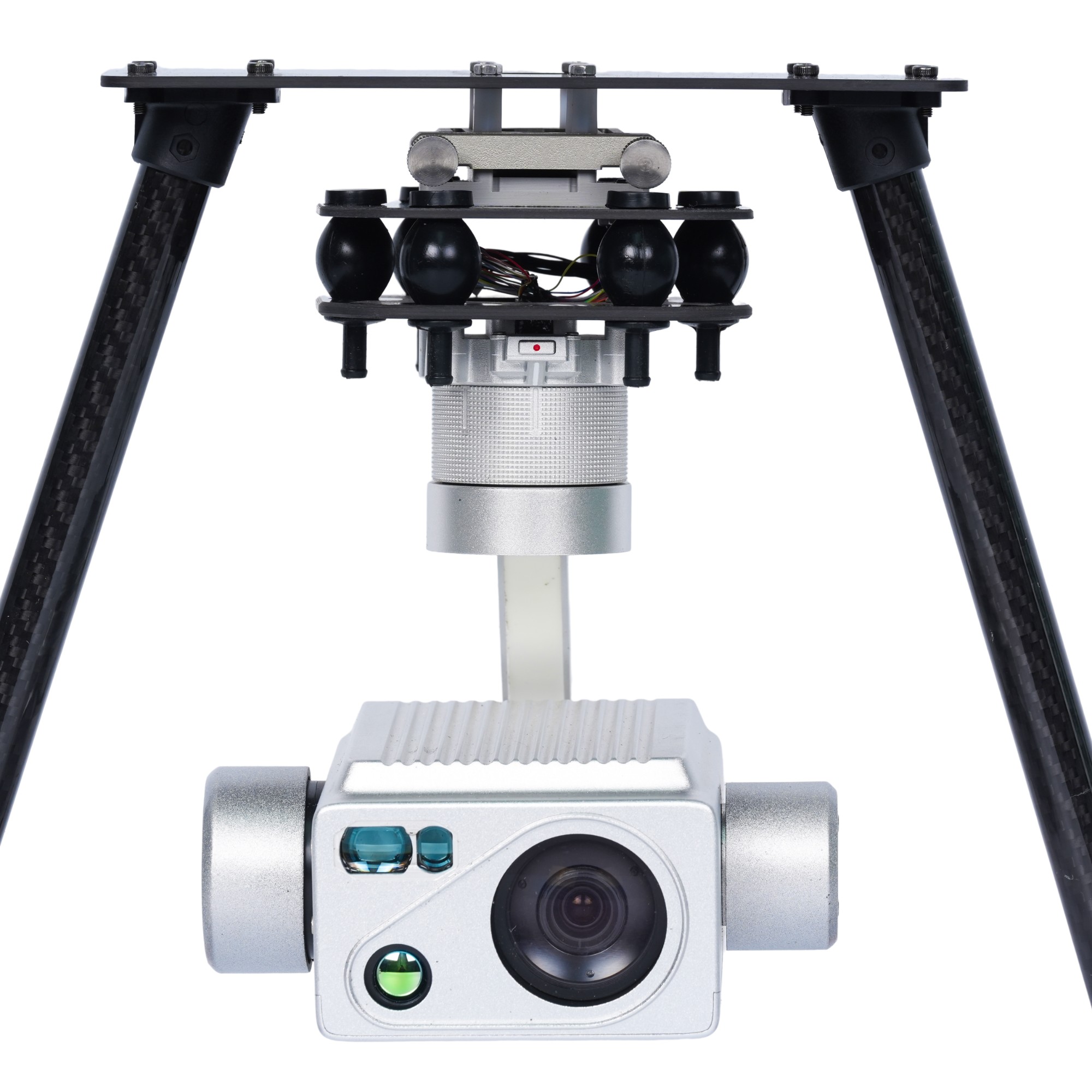

3-AXIS STABILIZED TRI-SENSOR Drone pod
This high-performance UAV pod seamlessly integrates a long-wave uncooled infrared camera, a 2-megapixel HD visible light camera, a laser rangefinder module, a self-developed AI recognition encoding board, and a highly stable three-axis platform.
Easily mounted on unmanned aircraft, this premier drone payload offers exceptional long-range reconnaissance capabilities for detecting armed personnel. With real-time visible and infrared video transmission for battlefield observation and tactical reconnaissance, it delivers all-weather and all-time operational readiness. The integrated laser rangefinder enables precise target location measurement, while advanced AI provides robust target recognition, matching, detection, and continuous tracking with real-time guidance signal output.
KEY FEATURES
LONG-RANGE DETAIL RESOLUTION
High-magnification zoom capability clearly restores fine target details in extremely long-distance scenarios, allowing operators to maintain superior visual intelligence without flying close to targets.
HIGH STABILITY AND PRECISION
The advanced three-axis stabilization platform effectively suppresses aircraft vibrations and turbulence, ensuring transmitted images and videos remain continuously clear and highly stable.
SMALL SIZE AND LIGHT WEIGHT
Meticulously engineered to minimize volume and weight, the payload does not negatively affect the flight performance, maneuverability, or endurance capabilities of the host aircraft.
MULTI-OBJECT REAL-TIME RECOGNITION AND TRACKING
Powered by an independently developed AI encoding board, the system can simultaneously identify, lock onto, and seamlessly track various dynamic targets, including pedestrians, vehicles, and ships.
STRONG ANTI-INTERFERENCE AND HIGH STABILITY
Built for harsh environments, the internal encoding board utilizes deep algorithm optimization to maintain accurate recognition rates and continuous target tracking even under extreme conditions.
|
Model
|
HY-330F
|
|
GIMBAL PARAMETERS
|
|
|
Image Stabilization Accuracy
|
≤0.001°(1σ,Disturbance0.5°@1Hz)
|
|
Frame Format
|
Three-Axis Mechanical Gyroscope Stabilization
|
|
Rotation Direction Can Be Controlled
|
Looking Up And Down:-110°~+30°,Direction:360°Roll:-45°~+45°
|
|
Response Speed
|
Position/Maximum Pitch Angular Velocity:60°/S;Acceleration:120°/S²
|
|
Control Method
|
Manual Control(Joystick)Preset Waypoint TriggeringAISmart Lock
|
|
VISIBLE LIGHT CAMERA PARAMETERS
|
|
|
Lens Pixels
|
1920*1080
|
|
Zoom
|
30XOptics+12Xnumber
|
|
Image Sensor
|
Sony 1/2.8Inch/STARVIS COMS
|
|
Automatic Ring Light/White Balance
|
Support
|
|
Wide Dynamic Range
|
Support
|
|
Fog Transmission Function
|
Support
|
|
THERMAL IMAGING CAMERA PARAMETERS
|
|
|
Resolution
|
640×512
|
|
Focal Length
|
9.1mm
|
|
Detection Range
|
1.5KM
|
|
FOV
|
24.8°×18.7°
|
|
Response Band
|
8~14um
|
|
Pixel Pitch
|
12um
|
|
LASER RANGING PARAMETERS
|
|
|
Wavelength
|
905nm
|
|
Detection Range
|
5m~2000m
|
|
Distance Measurement Accuracy
|
±0.5m
|
|
Measurement Frequency
|
1~5Hz
|
|
IDENTIFICATION AND TRACKING
|
|
|
Function
|
1)Autonomous Target Recognition Of People, Vehicles, Ships, And Other Targets.(Customizable Expansion);
2)It Features Manual Target Tracking Box Size Setting And Target Locking Capabilities; 3)It Has Target Detection And Tracking Prediction Capabilities; 4)Target Tracking Via Visible Light Or Infrared. |
|
Recognition Accuracy
|
Target Detection Rate:≥95%;Detection Rate:≤2%
|
|
SYSTEM INDICATORS
|
|
|
Gimbal Size
|
107 (Long)×97.85(Width)×113(High)
|
|
Weight
|
Product Weight: 686.7G
Quick-Release Module:109.6G |
|
Data Output
|
Track ID Target Type, Distance Information, Alarm Signals
|
|
Protection Level
|
IP45
|
|
Operating Temperature
|
-20℃~+50℃
|
|
Storage Temperature
|
-20℃~+60℃
|
|
Rain Test
|
It Can Operate Normally In Light Rain Conditions.
|
|
POWER SUPPLY AND POWER CONSUMPTION
|
|
|
Power Supply
|
DC12V~DC40V @12V 1A
|
|
Stable Power Consumption
|
≤15W
|
|
INTERFACES
|
|
|
Video
|
Network
|
|
Control
|
TTL Serial Port, Network, SBUS, PWM
|
|
Storage
|
≤128G Micro SD Card
|
|
LATFORM ADAPTATION
|
|
|
UAV Types
|
Multi-Rotor, Fixed-Wing, Unmanned Helicopter
|
|
Robot Types
|
Patrol Vehicles, Quadruped Robots And Other Inverted Carriers
|
|
Mounting Method
|
Top/Bottom Mounting(Custom Mounting Bracket Supported)
|
|
Flight Controller Compatibilit
|
Support Communication And Docking With Mainstream Flight Controllers (E.G., PIXhawk, APM, DJ SDK)
|
