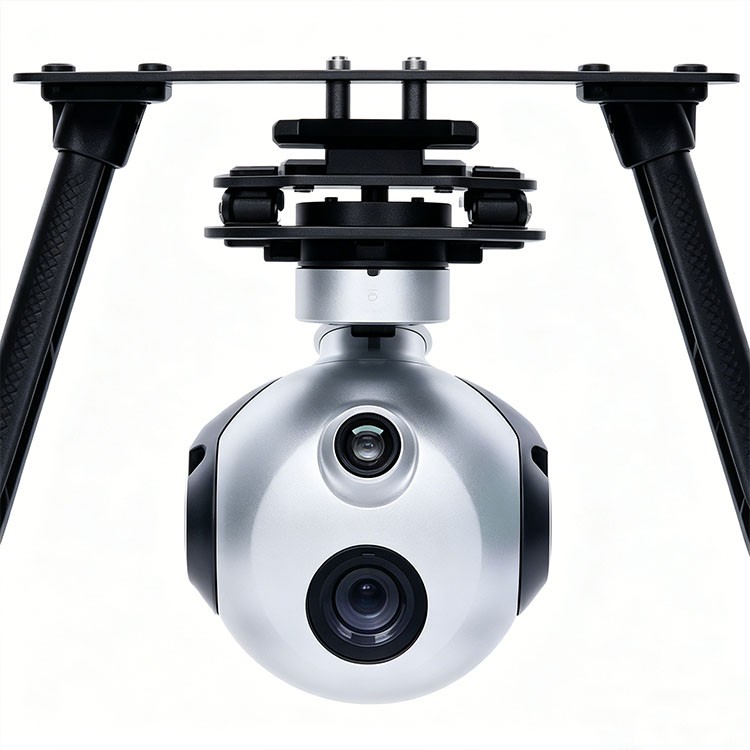

Lightweight Strong Anti-Interference Optical Drone Gimbal Pod for Disaster Response
3-AXIS STABILIZED LOW-LIGHT NIGHT VISION DUAL-SENSOR Drone pod
This high-performance UAV pod seamlessly integrates a long-wave uncooled infrared camera, a 4K HD visible light camera, a self-developed AI recognition encoding board, and a highly stable three-axis platform.
Easily mounted on unmanned aircraft, this premier drone payload pod features starlight-level night vision that captures crystal-clear 4K full-color images while restoring true target colors and details. With exceptional reconnaissance range for armed personnel and real-time visible and infrared video transmission, it delivers powerful battlefield observation and tactical reconnaissance capabilities.
KEY FEATURES
STARLIGHT-LEVEL LOW-LIGHT VISIBILITY
Even in environments with extremely weak light, the starlight-level camera can restore true scenes and capture clear, 4K full-color images, allowing operators to effectively carry out complex night missions.
HIGH STABILITY AND PRECISION
The integration of an advanced three-axis stabilization platform effectively suppresses aircraft vibrations and turbulence, ensuring that the transmitted images remain continuously clear and highly stable.
SMALL SIZE AND LIGHT WEIGHT
Meticulously engineered to minimize volume and weight as much as possible, ensuring the payload does not negatively affect the flight performance, maneuverability, or endurance capabilities of the host aircraft.
MULTI-OBJECT REAL-TIME RECOGNITION AND TRACKING
Powered by an independently developed AI encoding board, the system can simultaneously identify, lock onto, and seamlessly track various types of dynamic targets, including pedestrians, vehicles, and ships.
STRONG ANTI-INTERFERENCE AND HIGH STABILITY
Built specifically for harsh environments, the internal encoding board utilizes deep algorithm optimization to maintain an accurate recognition rate and continuous target tracking even under extreme and unpredictable conditions.
|
MODEL
|
HY-210Y
|
|
GIMBAL PARAMETERS
|
|
|
Image Stabilization Accuracy
|
≤0.001°(1σ, Disturbance 0.5°@1Hz)
|
|
Frame Form
|
Three-Axis Mechanical Gyro Image Stabilization
|
|
Controllable Rotation Direction
|
Pitch:-110°~+30°,Azimuth:360°, Roll:-45°~+45°
|
|
Response Speed
|
Max Angular Velocity Of Azimuth/Pitch:60°/S; Acceleration:120°/S2
|
|
Control Mode
|
Manual Control(Joystick), Preset Waypoint Trigger, Al Intelligent Locking
|
|
VISIBLE LIGHT CAMERA PARAMETERS
|
|
|
Lens Pixel
|
4K
|
|
Zoom
|
10X Optical+16X Digital
|
|
Focal Length
|
4.8~48mm
|
|
Night Vision Full Color
|
Low-Light Visibility, Full Color
|
|
Strong Light Suppression
|
Supported
|
|
Backlight Compensation
|
Supported
|
|
Fog Penetration Function
|
Supported
|
|
Aperture
|
FNo:1.7~3.2
|
|
Zoom Speed
|
Approx.3S(Optical)
|
|
Auto Day/Night Conversion
|
Supported
|
|
THERMAL IMAGING CAMERA PARAMETERS
|
|
|
Resolution
|
640×512
|
|
Focal Length
|
9.1mm
|
|
Detection Range
|
1.5KM
|
|
FOV
|
24.8°X18.7°
|
|
Response Waveband
|
8~14um
|
|
Pixel Pitch
|
12um
|
|
RECOGNITION AND TRACKING
|
|
|
Functions
|
1)Autonomous Target Recognition For Humans, Vehicles, Ships And Other Targets (Customizable Expansion);
2) Support For Manual Setting Of Target Tracking Frame Size And Target Locking; 3) With Target Detection And Tracking Prediction Capabilities; 4) Visible Light Or Infrared Tracking Of Targets. |
|
Recognition Accuracy
|
Target Detection Rate:≥95%; False Detection Rate:≤2%
|
|
SYSTEM PARAMETERS
|
|
|
Product Size
|
93.3(L)×95(W)×129.5(H)(Unit: mm)
|
|
Weight
|
409g
|
|
Data Output
|
Tracking ID, Target Type, Distance Information, Alarm Signal
|
|
Protection Grade
|
IP45
|
|
Operating Temperature
|
-20℃~+50℃
|
|
Storage Temperature
|
-20℃~+60℃
|
|
Rain Test
|
Normal Operation Under Light Rain Conditions
|
|
POWER SUPPLY AND POWER CONSUMPTION
|
|
|
Power Supply
|
DC12V~DC40V @12V 1A
|
|
Stable Power Consumption
|
≤15W
|
|
INTERFACES
|
|
|
Video
|
Network
|
|
Control
|
TTL Serial Port, Network, SBUS, PWM
|
|
Storage
|
≤128G Micro SD Card
|
|
LATFORM ADAPTATION
|
|
|
UAV Types
|
Multi-Rotor, Fixed-Wing, Unmanned Helicopter
|
|
Robot Types
|
Patrol Vehicles, Quadruped Robots And Other Inverted Carriers
|
|
Mounting Method
|
Top/Bottom Mounting(Custom Mounting Bracket Supported)
|
|
Flight Controller Compatibilit
|
Support Communication And Docking With Mainstream Flight Controllers (E.G., PIXhawk, APM, DJ SDK)
|
