 Anti-Backlight Customizable Zoom Ai Uav Eo Pod for Sewage Treatment Plants

Anti-Backlight Customizable Zoom Ai Uav Eo Pod for Sewage Treatment Plants

Short Description:

This professional drone pod is specially designed for sewage treatment plants, enabling efficient aerial inspection of pools, pipelines and treatment facilities....


  • Protection Level: IP45
  • Storage Temperature: -20℃~+60℃
  • Power Supply: DC7.2V~DC40V@12V1a
  • Video: Network
  • Specification: 93.3(L)×95(W)×129.5(H)(Unit: mm)

Product Details

Product Tags

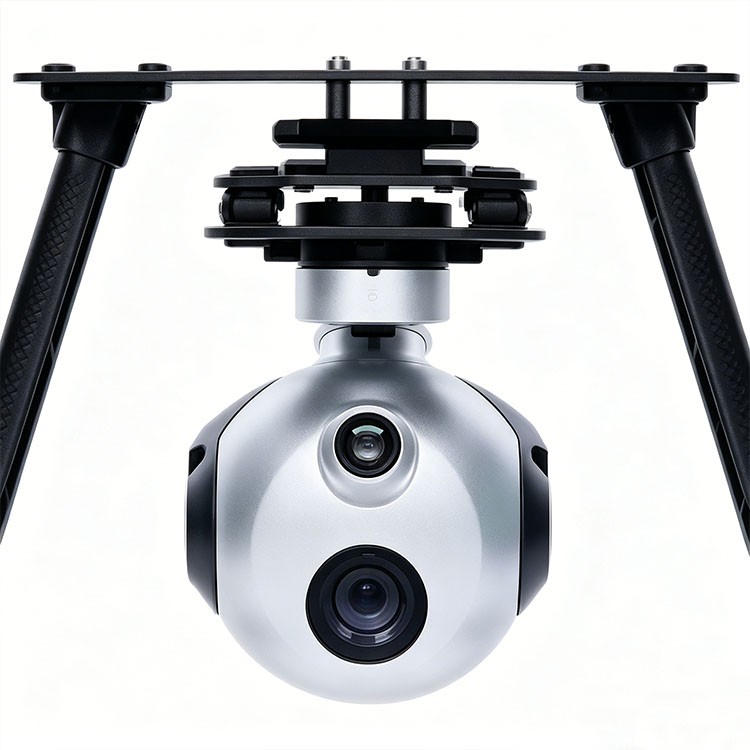

3-AXIS STABILIZED LOW-LIGHT NIGHT VISION DUAL-SENSOR Drone pod

This high-performance UAV pod seamlessly integrates a long-wave uncooled infrared camera, a 4K HD visible light camera, a self-developed AI recognition encoding board, and a highly stable three-axis platform.

Easily mounted on unmanned aircraft, this premier drone payload pod features starlight-level night vision that captures crystal-clear 4K full-color images while restoring true target colors and details. With exceptional reconnaissance range for armed personnel and real-time visible and infrared video transmission, it delivers powerful battlefield observation and tactical reconnaissance capabilities.

KEY FEATURES

STARLIGHT-LEVEL LOW-LIGHT VISIBILITY

Even in environments with extremely weak light, the starlight-level camera can restore true scenes and capture clear, 4K full-color images, allowing operators to effectively carry out complex night missions.

HIGH STABILITY AND PRECISION

The integration of an advanced three-axis stabilization platform effectively suppresses aircraft vibrations and turbulence, ensuring that the transmitted images remain continuously clear and highly stable.

SMALL SIZE AND LIGHT WEIGHT

Meticulously engineered to minimize volume and weight as much as possible, ensuring the payload does not negatively affect the flight performance, maneuverability, or endurance capabilities of the host aircraft.

MULTI-OBJECT REAL-TIME RECOGNITION AND TRACKING

Powered by an independently developed AI encoding board, the system can simultaneously identify, lock onto, and seamlessly track various types of dynamic targets, including pedestrians, vehicles, and ships.

STRONG ANTI-INTERFERENCE AND HIGH STABILITY

Built specifically for harsh environments, the internal encoding board utilizes deep algorithm optimization to maintain an accurate recognition rate and continuous target tracking even under extreme and unpredictable conditions.


Specification
MODEL
HY-210Y
GIMBAL PARAMETERS
Image Stabilization Accuracy
≤0.001°(1σ, Disturbance 0.5°@1Hz)
Frame Form
Three-Axis Mechanical Gyro Image Stabilization
Controllable Rotation Direction
Pitch:-110°~+30°,Azimuth:360°, Roll:-45°~+45°
Response Speed
Max Angular Velocity Of Azimuth/Pitch:60°/S; Acceleration:120°/S2
Control Mode
Manual Control(Joystick), Preset Waypoint Trigger, Al Intelligent Locking
VISIBLE LIGHT CAMERA PARAMETERS
Lens Pixel
4K
Zoom
10X Optical+16X Digital
Focal Length
4.8~48mm
Night Vision Full Color
Low-Light Visibility, Full Color
Strong Light Suppression
Supported
Backlight Compensation
Supported
Fog Penetration Function
Supported
Aperture
FNo:1.7~3.2
Zoom Speed
Approx.3S(Optical)
Auto Day/Night Conversion
Supported
THERMAL IMAGING CAMERA PARAMETERS
Resolution
640×512
Focal Length
9.1mm
Detection Range
1.5KM
FOV
24.8°X18.7°
Response Waveband
8~14um
Pixel Pitch
12um
RECOGNITION AND TRACKING
Functions
1)Autonomous Target Recognition For Humans, Vehicles, Ships And Other Targets (Customizable Expansion);
2) Support For Manual Setting Of Target Tracking Frame Size And Target Locking;
3) With Target Detection And Tracking Prediction Capabilities;
4) Visible Light Or Infrared Tracking Of Targets.
Recognition Accuracy
Target Detection Rate:≥95%; False Detection Rate:≤2%
SYSTEM PARAMETERS
Product Size
93.3(L)×95(W)×129.5(H)(Unit: mm)
Weight
409g
Data Output
Tracking ID, Target Type, Distance Information, Alarm Signal
Protection Grade
IP45
Operating Temperature
-20℃~+50℃
Storage Temperature
-20℃~+60℃
Rain Test
Normal Operation Under Light Rain Conditions
POWER SUPPLY AND POWER CONSUMPTION
Power Supply
DC12V~DC40V @12V 1A
Stable Power Consumption
≤15W
INTERFACES
Video
Network
Control
TTL Serial Port, Network, SBUS, PWM
Storage
≤128G Micro SD Card
LATFORM ADAPTATION
UAV Types
Multi-Rotor, Fixed-Wing, Unmanned Helicopter
Robot Types
Patrol Vehicles, Quadruped Robots And Other Inverted Carriers
Mounting Method
Top/Bottom Mounting(Custom Mounting Bracket Supported)
Flight Controller Compatibilit
Support Communication And Docking With Mainstream Flight Controllers (E.G., PIXhawk, APM, DJ SDK)
